Aviation Training Partners International Inc.™

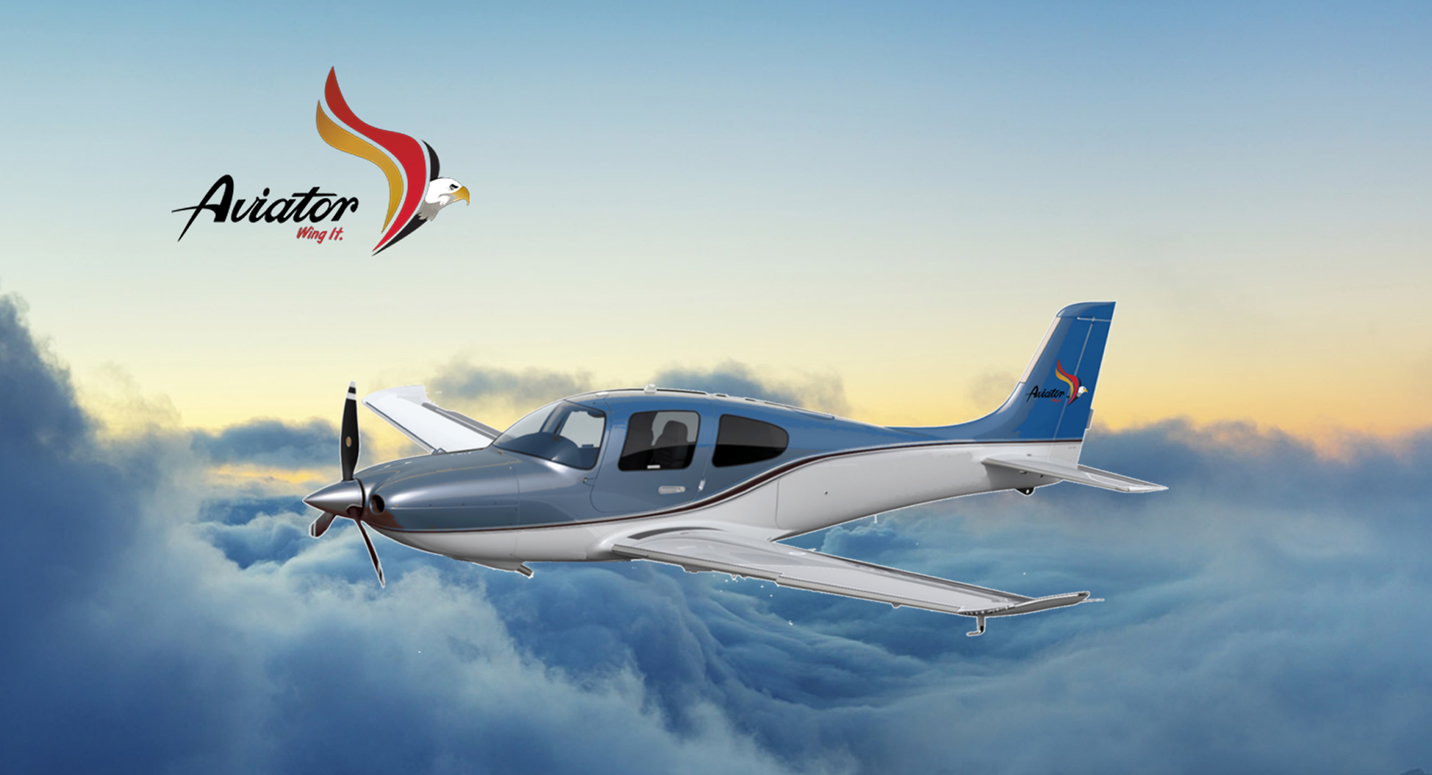

Aviator™ Series Aircraft
ATPI AVIATOR™
At the time of issuance, this information is pre- release and is subject to change without notice.
| MODEL | T1 | T2 | X | XR | XL | XLR |
| Number of Cylinders | 4 | 4 | 6 | 6 | 6 | 6 |
| Engine Model | O-320-B3B | O-320-B3B | O-360-A1A | O-360-A1A | TIO-540-J2B | TIO-540-J2B |
| FADAC/IE2 Available | NO | NO | YES | YES | YES | YES |
| Horsepower Rating | 160 hp | 160 hp | 180 hp | 180 hp | 350 hp | 350 hp |
| Fuel Burn Rate gal/hr | 5.2 | 5.2 | 7.5 | 7.5 | 17 | 17 |
| Usable Gallons | 46 | 46 | 92 | 92 | 92 | 92 |
| Cruise | 146 kts | 146 kts | 183 kts | 195 kts | 234 kts | 243 kts |
| NBAA Range | 1200 nm | 1200 nm | 2100 nm | 2245 nm | 1090 nm | 1132 nm |
| Passengers | 2 | 2 | 4 | 4 | 4 | 4 |
| Built in O2 | NO | NO | NO | NO | YES | YES |
| Glass Cockpit | NO | YES | YES | YES | YES | YES |
| Base Price in $USD | $ 259,000 | $329,000 | $359,000 | $425,000 | $550,000 | $625,000 |
| Order | Order | Order | Order | Order | Order |
Engine Manufacturer ................................................................ Lycoming
Fuel Metering ......................................................................... Fuel Injected
Engine Cooling.......................................................................... Air Cooled
Engine Type.................................... Horizontally Opposed, Direct Drive
Propeller
Propeller Type ........................................Constant Speed, Three Blade
Diameter.............................................................78.0" (76.0" Minimum)
Hartzell
Propeller Type ........................................Constant Speed, Three Blade
Model Number.............................................. PHC-J3YF-1RF/F?694(B)
Model Number......................................... PHC-J3YF-1RF/F7693DF(B)
or
McCauley
Model Number ....................................................D3A34C443/78CYA-0
or
MT Propeller
Three Blade Model Number.............................................................MTV-9-D/198-52
Fuel
Total Capacity .............................................94.5 U.S. Gallons (358.0 L)
Total Usable................................................92.0 U.S. Gallons (348.0 L)
Approved Fuel Grades:
100 LL Grade Aviation Fuel (Blue)
100 (Formerly 100/130) Grade Aviation Fuel (Green)
Maximum Certificated Weights
Maximum Gross for Takeoff...................................... 3400 lb (1542 Kg)
Maximum Baggage Compartment Loading.................... 130 lb (59 Kg)
Standard Empty Weight............................................ 2250 lb (1021 Kg)
Maximum Useful Load................................................ 1150 lb (522 Kg)
Full Fuel Payload .......................................................... 610 lb (277 Kg)
