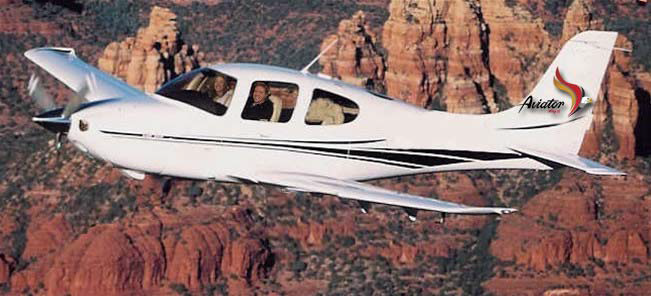

ATPI AVIATOR™





At the time of issuance, this information is pre- release and is subject to change without notice.

MODELT1T2XXRXLXLR
Number of Cylinders446666
Engine ModelO-320-B3BO-320-B3BO-360-A1AO-360-A1ATIO-540-J2BTIO-540-J2B
FADAC/IE2 AvailableNONOYESYESYESYES
Horsepower Rating160 hp160 hp180 hp180 hp350 hp350 hp
Fuel Burn Rate gal/hr5.25.27.57.51717
Usable Gallons464692929292
Cruise146 kts146 kts183 kts195 kts234 kts243 kts
NBAA Range1200 nm1200 nm2100 nm2245 nm1090 nm1132 nm
Passengers224444
Built in O2NONONONOYESYES
Glass CockpitNOYESYESYESYESYES
Base Price in $USD$ 259,000$329,000$359,000$425,000$550,000$625,000

Engine Manufacturer ................................................................ Lycoming
Fuel Metering ......................................................................... Fuel Injected
Engine Cooling.......................................................................... Air Cooled
Engine Type.................................... Horizontally Opposed, Direct Drive

Propeller

Propeller Type ........................................Constant Speed, Three Blade
Diameter.............................................................78.0" (76.0" Minimum)
Hartzell
Propeller Type ........................................Constant Speed, Three Blade
Model Number.............................................. PHC-J3YF-1RF/F?694(B)
Model Number......................................... PHC-J3YF-1RF/F7693DF(B)

or

McCauley
Model Number ....................................................D3A34C443/78CYA-0

or

MT Propeller
Three Blade Model Number.............................................................MTV-9-D/198-52

Fuel

Total Capacity .............................................94.5 U.S. Gallons (358.0 L)
Total Usable................................................92.0 U.S. Gallons (348.0 L)
Approved Fuel Grades:
100 LL Grade Aviation Fuel (Blue)
100 (Formerly 100/130) Grade Aviation Fuel (Green)

Maximum Certificated Weights
Maximum Gross for Takeoff...................................... 3400 lb (1542 Kg)
Maximum Baggage Compartment Loading.................... 130 lb (59 Kg)
Standard Empty Weight............................................ 2250 lb (1021 Kg)
Maximum Useful Load................................................ 1150 lb (522 Kg)
Full Fuel Payload .......................................................... 610 lb (277 Kg)
